Fundamentals of digital data transmission
Search Transfer and Protection of Information
Theory
1. Introduction to Digital Data Transmission
Digital data transmission involves sending information in discrete (binary) form over communication channels. The efficiency and reliability of transmission depend on the type of communication channel, transmission medium, and modulation/coding techniques used.
2. Basic Types of Communication Channels
Communication channels can be classified based on their switching mechanisms:
- Dedicated (Leased) Channels
- Permanent connection between two points.
- Used for high-speed, continuous data transfer (e.g., leased lines for corporate networks).
- High cost but stable performance.
- Permanent connection between two points.
- Switched Channels
- Connection is established only when needed (e.g., traditional telephone networks).
- Can be circuit-switched (reserves full bandwidth) or packet-switched (dynamic allocation).
- Connection is established only when needed (e.g., traditional telephone networks).
- Message-Switching
- Data is sent as complete messages stored and forwarded by intermediate nodes.
- Used in older telegraph and email systems.
- Data is sent as complete messages stored and forwarded by intermediate nodes.
- Packet-Switching
- Data is divided into packets and transmitted independently.
- More efficient than circuit-switching (e.g., the Internet).
- Data is divided into packets and transmitted independently.
3. Physical Transmission Media and Their Characteristics
3.1 Introduction to Transmission Media
Transmission media are the physical pathways that carry data between devices in a network. They can be classified into two main categories:
- Wired (Guided) Media – Signals travel through a physical conductor (e.g., copper wire, fiber optics).
- Wireless (Unguided) Media – Signals propagate through the air or vacuum (e.g., radio waves, infrared).
The choice of media depends on factors such as:
- Bandwidth (data transfer capacity)
- Attenuation (signal loss over distance)
- Interference susceptibility (EMI, RFI)
- Cost and installation complexity
3.2 Wired Communication Media
3.2.1 Twisted Pair Cable
Structure:
- Two insulated copper wires twisted together to reduce electromagnetic interference (EMI).
- Commonly used in Ethernet networks (LANs, telephone lines).
Types:

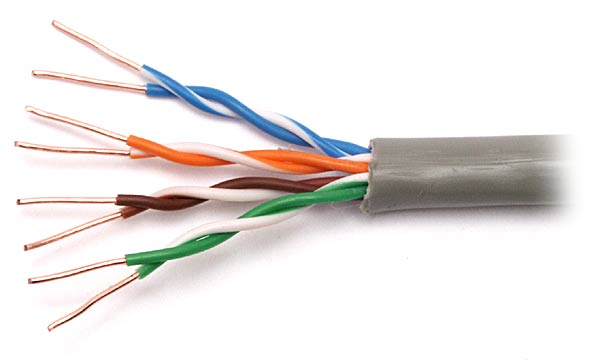

- Unshielded Twisted Pair (UTP)
- No additional shielding, cheaper, but prone to interference.
- Categories:
- Cat5e (1 Gbps, 100 MHz)
- Cat6 (10 Gbps, 250 MHz)
- Cat6a/7 (10+ Gbps, 500+ MHz)
- Cat5e (1 Gbps, 100 MHz)
- No additional shielding, cheaper, but prone to interference.

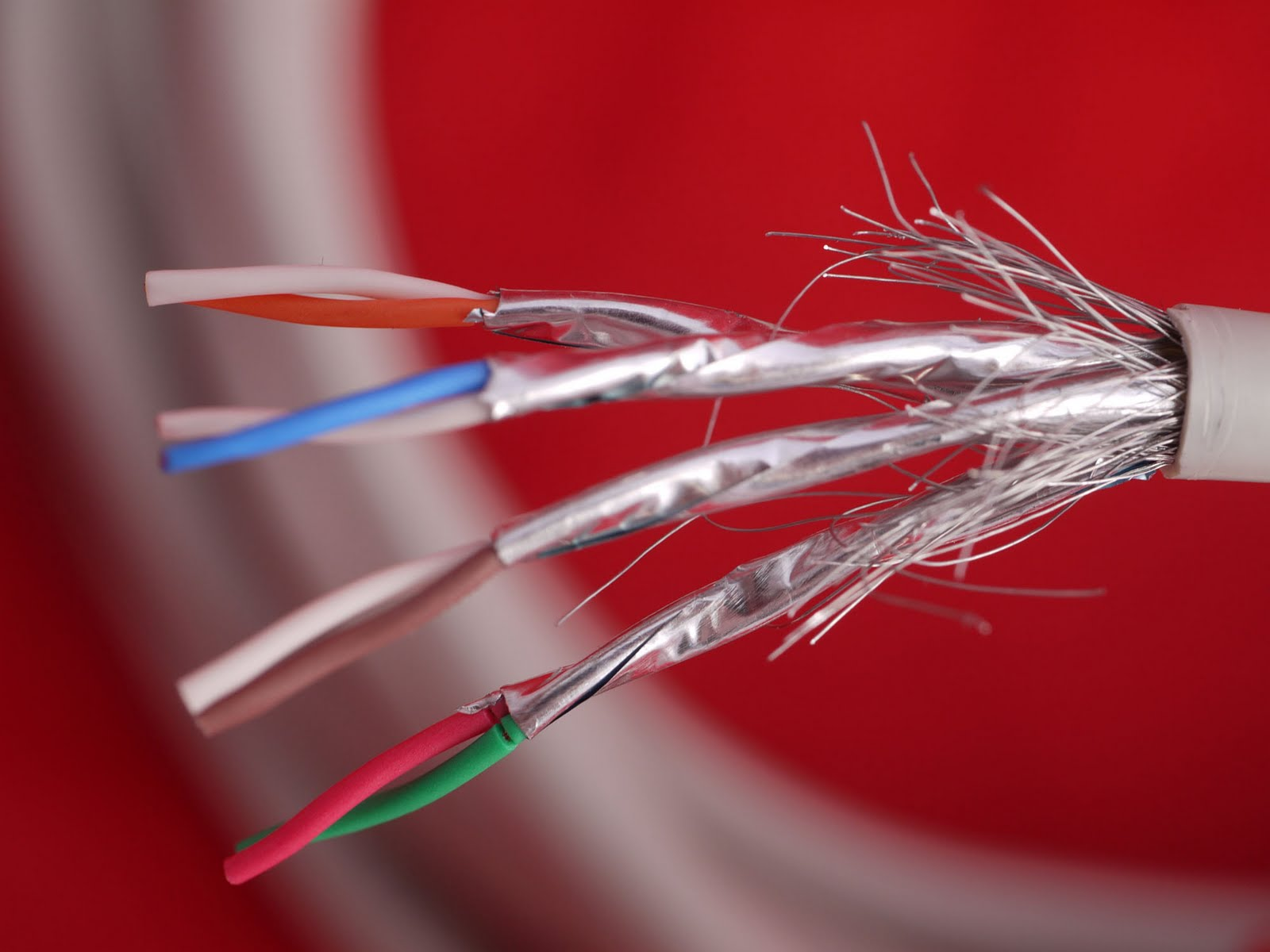

- Shielded Twisted Pair (STP)
- Extra foil or braided shielding to reduce EMI.
- Used in industrial environments with high interference.
- Extra foil or braided shielding to reduce EMI.
Advantages:
- Low cost, easy installation, widely available.
Disadvantages:
- Limited bandwidth compared to fiber, susceptible to crosstalk.

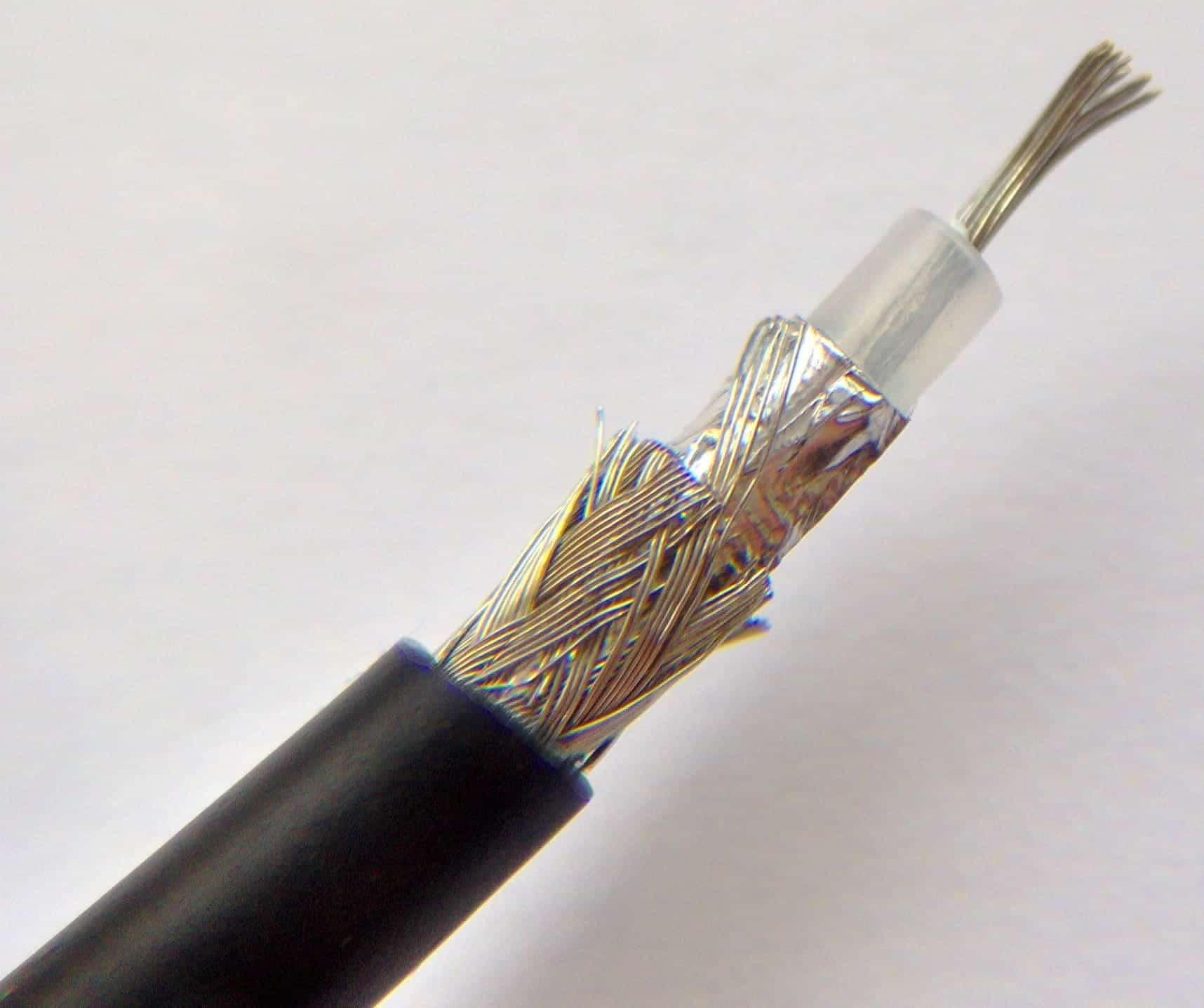

3.2.2 Coaxial Cable
Structure:
- Central copper conductor, dielectric insulator, metallic shield, outer plastic jacket.
- Used in cable TV, broadband Internet (DOCSIS), and older Ethernet (10BASE2/5).
Types:
- Thin (10BASE2) vs. Thick (10BASE5) Ethernet
- RG-6 (TV, broadband) vs. RG-58 (older networking)
Advantages:
- Better EMI shielding than twisted pair.
- Higher bandwidth (up to 1 GHz).
Disadvantages:
- Bulkier and harder to install than twisted pair.
- Being replaced by fiber in high-speed networks.

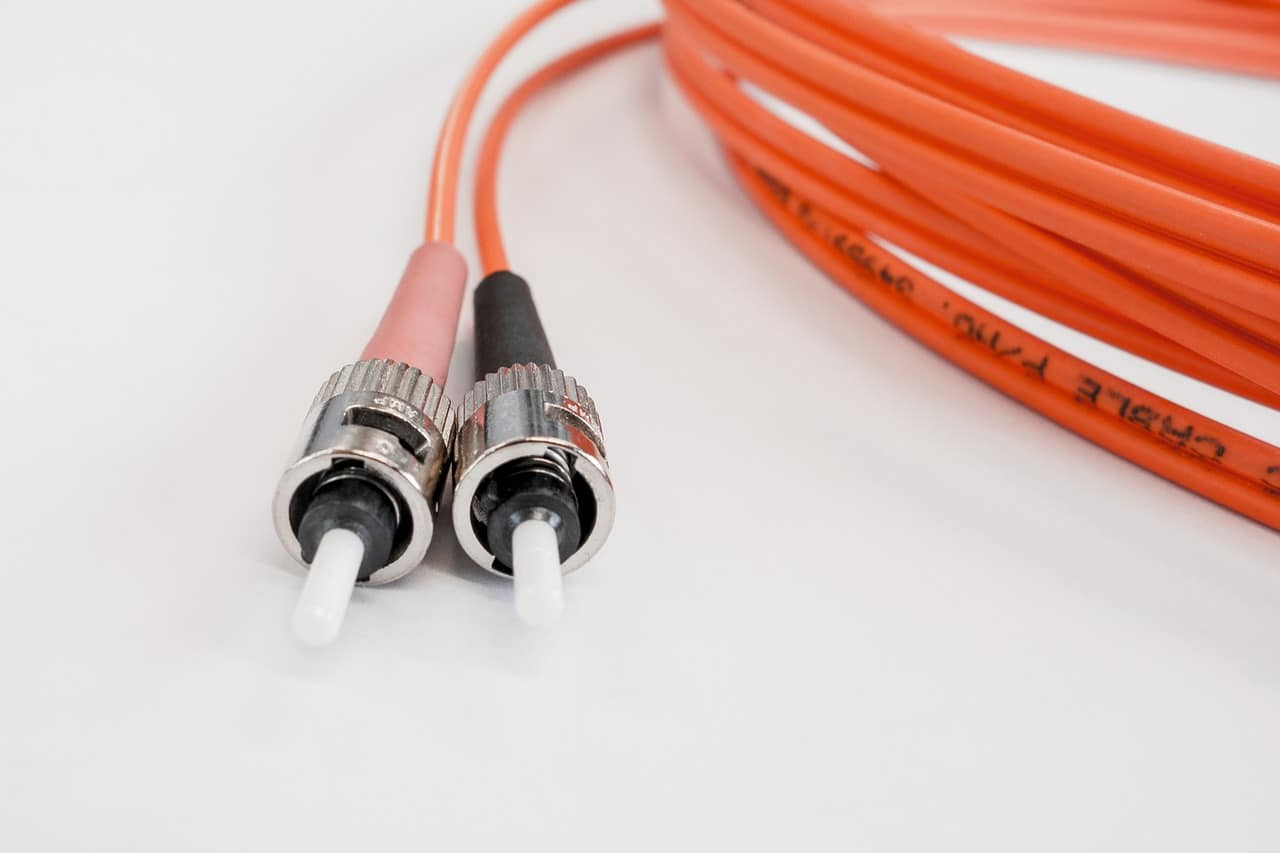

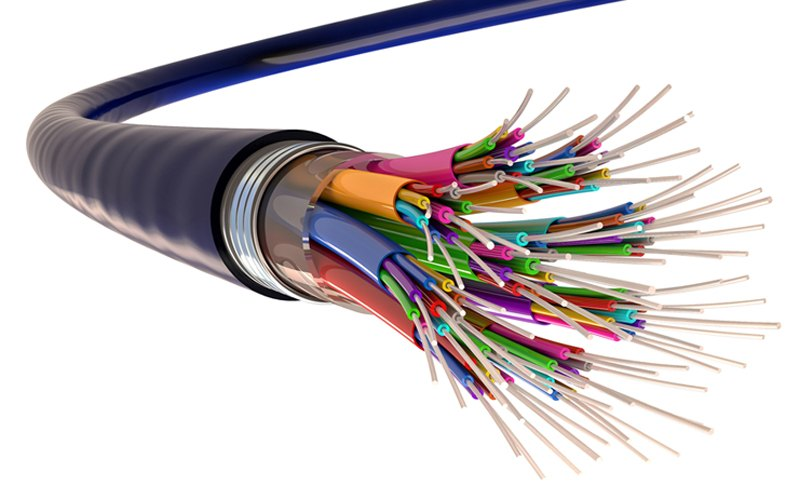

3.2.3 Optical Fiber Cable

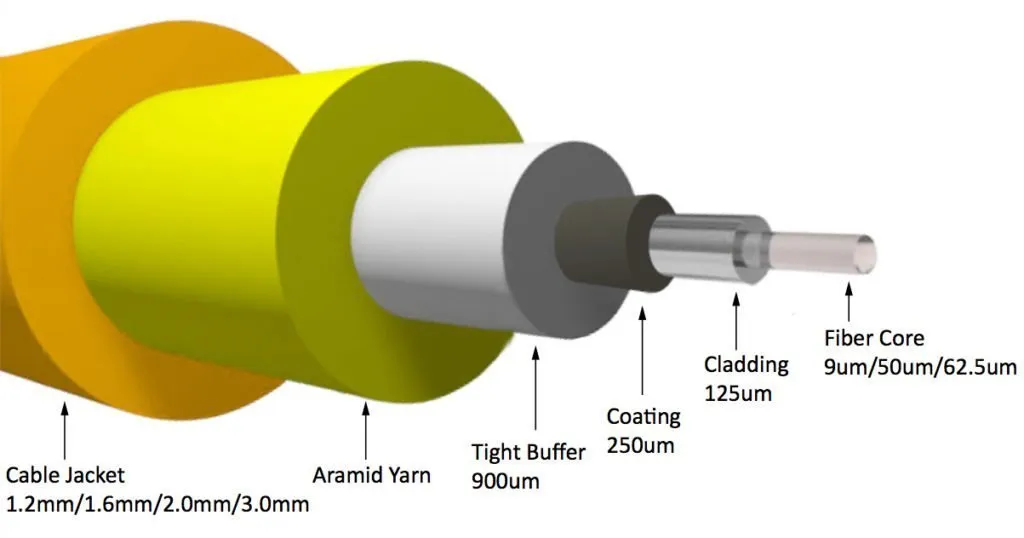

Structure:
- Core (glass/plastic), cladding (reflects light), protective coating.
- Data transmitted as light pulses (laser/LED).
Types:
- Single-Mode Fiber (SMF)
- Thin core (~9 µm), long-distance (100+ km), laser-based.
- Used in telecom backbones, undersea cables.
- Thin core (~9 µm), long-distance (100+ km), laser-based.
- Multimode Fiber (MMF)
- Thicker core (~50-62.5 µm), shorter distances (up to 2 km), LED-based.
- Used in LANs, data centers.
- Thicker core (~50-62.5 µm), shorter distances (up to 2 km), LED-based.
Advantages:
- Extremely high bandwidth (Tbps possible).
- Immune to EMI, low attenuation.
Disadvantages:
- Expensive installation and equipment.
- Fragile, requires precise alignment.
3.3 Wireless Communication Media
3.3.1 Infrared (IR) & Laser Communication
- Infrared: Short-range (~5m), line-of-sight (e.g., TV remotes, IrDA).
- Laser: Point-to-point high-speed links (e.g., free-space optical comms).
Advantages:
- Secure (directional, hard to intercept).
- No RF interference.
Disadvantages:
- Affected by weather (fog, rain).
- Requires precise alignment.
3.3.2 Radio Frequency (RF) Communication
- Uses electromagnetic waves (kHz to GHz).
- Applications:
- Wi-Fi (2.4 GHz, 5 GHz, 6 GHz bands)
- Bluetooth (2.4 GHz, short-range)
- Microwave links (long-distance point-to-point)
- Wi-Fi (2.4 GHz, 5 GHz, 6 GHz bands)
Advantages:
- No physical cabling needed.
- Supports mobility (e.g., cellular networks).
Disadvantages:
- Susceptible to interference, signal fading.
- Limited bandwidth compared to fiber.
3.3.3 Satellite Communication
- Uses geostationary (GEO), medium Earth orbit (MEO), or low Earth orbit (LEO) satellites.
- Applications:
- TV broadcasting (GEO, e.g., DirecTV)
- Internet (Starlink – LEO satellites)
- Military & GPS navigation
- TV broadcasting (GEO, e.g., DirecTV)
Advantages:
- Global coverage, even in remote areas.
Disadvantages:
- High latency (especially GEO, ~500 ms).
- Expensive infrastructure.
3.3.4 Cellular Communication Systems
- Uses frequency division (FDMA), time division (TDMA), and code division (CDMA).
- Generations:
- 4G LTE (100 Mbps – 1 Gbps)
- 5G (1+ Gbps, ultra-low latency)
- 4G LTE (100 Mbps – 1 Gbps)
Advantages:
- High mobility support.
- Increasing speeds with each generation.
Disadvantages:
- Requires dense infrastructure (cell towers).
- Spectrum licensing costs.
3.4 Comparison of Transmission Media
| Medium | Max Bandwidth | Max Distance | Interference Resistance | Cost |
|---|---|---|---|---|
| UTP (Cat6) | 10 Gbps | 100 m | Low | Low |
| Coaxial (RG-6) | 1 Gbps | 500 m | Medium | Medium |
| Fiber (Single-Mode) | 100+ Tbps | 100+ km | High | High |
| Wi-Fi (6E) | 10 Gbps | 100 m | Medium | Medium |
| Satellite (LEO) | 100+ Mbps | Global | High (weather-dependent) | Very High |
3.5 Emerging Trends in Transmission Media
- Terahertz (THz) Wireless (6G research)
- Quantum Communication (ultra-secure fiber-based networks)
- Air Fiber (mmWave wireless backhaul)
Conclusion
The choice of transmission media depends on bandwidth needs, distance, cost, and environmental factors. Wired media (fiber, twisted pair) dominate high-speed fixed networks, while wireless (Wi-Fi, cellular, satellite) enables mobility and remote connectivity. Future advancements will push towards higher speeds, lower latency, and greater reliability.
4. Characteristics and Equipment of Communication Lines
- Amplitude-Frequency Response (AFR): How a channel responds to different frequencies.
- Bandwidth: The range of frequencies a channel can transmit (higher bandwidth = higher data rates).
- Attenuation: Signal loss over distance (measured in decibels).
5. Information Theory Basics
- Amount of Information (Entropy): Measures uncertainty in data (Shannon’s entropy formula).
- Channel Capacity (Shannon’s Theorem):
\[ C = B \cdot \log_2(1 + \frac{S}{N}) \]
where:
- \(C\) = Channel capacity (bits/sec)
- \(B\) = Bandwidth (Hz)
- \(S/N\) = Signal-to-noise ratio
6. Multiplexing Techniques
6.1 Introduction to Multiplexing
Multiplexing is a technique that allows multiple signals to be transmitted simultaneously over a single communication channel. It optimizes bandwidth usage and reduces costs by combining multiple data streams into one.
Key Benefits of Multiplexing:
- Efficient use of bandwidth (more users share the same medium).
- Reduced infrastructure costs (fewer cables/channels needed).
- Supports multiple communication sessions (voice, video, data).
6.2 Types of Multiplexing Techniques
6.2.1 Frequency Division Multiplexing (FDM)
Principle:
- Divides the channel into separate frequency bands.
- Each signal is assigned a unique frequency range.
Applications:
- Radio & TV broadcasting (different stations on different frequencies).
- Analog telephone systems (DSL Internet over phone lines).
Advantages:
- Simple implementation for analog signals.
- No synchronization needed between signals.
Disadvantages:
- Wastes bandwidth due to guard bands (unused frequencies between channels).
- Susceptible to crosstalk and interference.
6.2.2 Time Division Multiplexing (TDM)
Principle:
- Divides the channel into fixed time slots.
- Each signal transmits in its assigned slot in a repeating cycle.
Types:
- Synchronous TDM (STDM)
- Fixed time slots (even if a device has no data to send).
- Used in T1/E1 lines (1.544/2.048 Mbps).
- Fixed time slots (even if a device has no data to send).
- Statistical (Asynchronous) TDM
- Dynamic slot allocation (only active devices transmit).
- More efficient than STDM (used in packet-switched networks).
- Dynamic slot allocation (only active devices transmit).
**Applications:
- Digital telephony (PCM, ISDN)
- SONET/SDH optical networks
Advantages:
- Efficient for digital signals.
- No frequency interference issues.
Disadvantages:
- Requires precise synchronization.
- Inefficient if some devices are idle (STDM).
6.2.3 Wavelength Division Multiplexing (WDM)
Principle:
- Used in fiber-optic communication.
- Multiple optical signals (different wavelengths) transmitted simultaneously.
Types:
- Coarse WDM (CWDM) – Fewer channels (up to 18), wider spacing.
- Dense WDM (DWDM) – Up to 160 channels, tightly spaced (e.g., 100 Gbps per λ).
Applications:
- Long-haul fiber networks (submarine cables, backbone ISPs).
- Data center interconnects.
Advantages:
- Massive bandwidth (terabit speeds possible).
- Scalable (new wavelengths can be added).
Disadvantages:
- Expensive laser and filtering equipment.
- Signal distortion over long distances (dispersion).
6.2.4 Code Division Multiplexing (CDM)
Principle:
- Each signal is encoded with a unique spreading code.
- All signals share the same frequency band simultaneously.
Applications:
- CDMA cellular networks (3G, some 4G).
- Military & GPS systems (resistant to jamming).
Advantages:
- Secure (hard to intercept without the code).
- Efficient use of bandwidth.
Disadvantages:
- Complex signal processing.
- Limited by noise and interference.
6.3 Comparison of Multiplexing Techniques
| Technique | Basis of Separation | Best For | Advantages | Disadvantages |
|---|---|---|---|---|
| FDM | Frequency bands | Analog signals | Simple, no sync needed | Wastes bandwidth |
| TDM | Time slots | Digital signals | Efficient for digital | Needs sync |
| WDM | Light wavelengths | Fiber optics | Ultra-high capacity | Expensive |
| CDM | Unique codes | Wireless comms | Secure, robust | Complex decoding |
6.4 Advanced Multiplexing Concepts
6.4.1 Orthogonal Frequency Division Multiplexing (OFDM)
- Used in Wi-Fi (802.11a/g/n/ac), 4G/5G, DSL.
- Divides channel into multiple orthogonal subcarriers.
- Resistant to multipath interference.
6.4.2 Space Division Multiplexing (SDM)
- Uses multiple antennas (MIMO) for parallel transmission.
- Key technology in 5G and Wi-Fi 6.
6.4.3 Polarization Division Multiplexing (PDM)
- Uses light’s polarization states in fiber optics.
- Doubles capacity without extra wavelengths.
6.5 Practical Applications of Multiplexing
6.5.1 Telecommunications (T1/E1 Lines)
- T1 (1.544 Mbps): 24 voice channels (64 Kbps each) via TDM.
- E1 (2.048 Mbps): 30 channels (Europe/Asia standard).
6.5.2 Internet Backbone (DWDM)
- 100+ Gbps per wavelength in long-haul fiber networks.
6.5.3 Cellular Networks (4G/5G)
- LTE: Uses OFDMA (Orthogonal FDMA).
- 5G: Combines TDM, FDM, and SDM (Massive MIMO).
6.6 Future Trends in Multiplexing
- Elastic Optical Networks (EON): Dynamic wavelength allocation.
- Quantum Multiplexing: Using quantum states for ultra-secure channels.
- Terahertz (THz) Multiplexing: For 6G and beyond.
7. Analog Data Transmission & Modulation
- Modulation Techniques:
- Amplitude Modulation (AM)
- Frequency Modulation (FM)
- Phase Modulation (PM)
- Quadrature Amplitude Modulation (QAM) – combines AM and PM for higher efficiency.
- Amplitude Modulation (AM)
8. Digital Encoding & Transmission
- Logical Coding:
- NRZ, Manchester, Differential Manchester – used in Ethernet.
- NRZ, Manchester, Differential Manchester – used in Ethernet.
- Redundant Codes (Error Detection/Correction):
- Parity Check, CRC, Hamming Codes.
- Parity Check, CRC, Hamming Codes.
- Scrambling: Prevents long sequences of zeros/ones (e.g., B8ZS, HDB3).
9. Transmission Modes at the Physical Layer
- Asynchronous Transmission:
- Start-stop bits for synchronization (e.g., UART in serial communication).
- Start-stop bits for synchronization (e.g., UART in serial communication).
- Synchronous Transmission:
- Uses clock signals for precise timing (e.g., SPI, I2C).
10. Channel & Packet Switching
- Circuit Switching: Dedicated path (e.g., traditional phone calls).
- Packet Switching: Data split into packets (e.g., IP networks).
11. Signal Compression Techniques
- Frequency-Domain Compression (e.g., MP3, JPEG).
- Temporal Compression (e.g., video codecs like H.264).
Conclusion
Understanding digital data transmission requires knowledge of communication channels, transmission media, modulation, multiplexing, and error handling. Modern networks rely on a combination of wired and wireless technologies with efficient switching and coding methods to ensure reliable data transfer.
